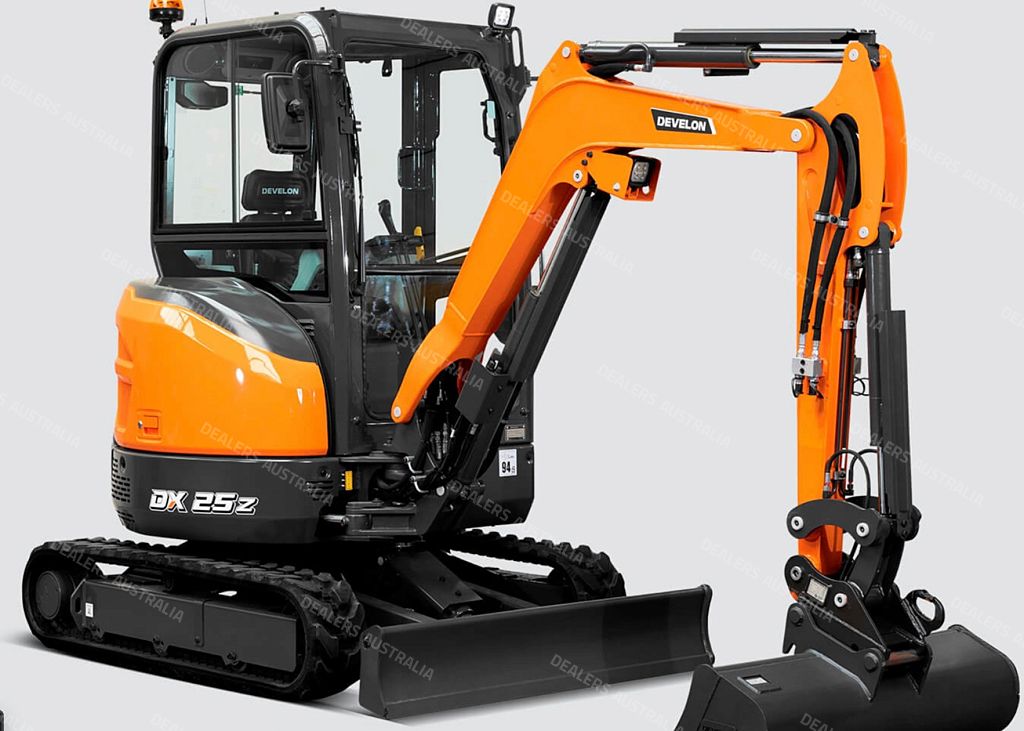

DEVELON DX25Z-7 2.5T TRACKED EXCAVATOR for sale

FOLLOW US FOR ALL NEW LISTINGS: @dwlmachinery

Ph: Andrew (02) 8311 1321 or 1300 DIAL DWL

ENGINE

Make DEVELON

Model D18-DM01P

Number of cylinders 3

Rated power, gross (hp per SAE J1995) 48.8 hp (36.4 kW) @ 2200 rpm

Rated power, net (hp per SAE J1349) 47.1 hp (35.1 kW) @ 2200 rpm

Max. torque, net (SAE J1995) 133.0 lbf.ft. (18.4 kgfm) @ 1600 rpm

Displacement 146.0 in.3 (2.4 L)

Bore and stroke 3.5 x 3.7 (90 mm x 94 mm)

Starter 12 V, 3.6 hp (2.7 kW)

Battery 12 V, 100 AH

Alternator 12 V, 90 A

Air cleaner Double elements Unit 1.3 m arm

Operating weight kg 2 691

Bucket capacity (SAE heaped), standard m3 0.07

A Overall length mm 4 170

B Overall width mm 1 550

C Overall height mm 2 452

D Overall width of upperstructure mm 1 490

E Overall height of cab mm 2 452

F Ground clearance of counterweight mm 504

G Overall height of engine hood mm 1 522

H Minimum ground clearance mm 183

I Rear-end swing radius (add. CW) mm 775 (875)

J Distance between tumblers mm 1 550

K Undercarriage length mm 1 975

L Undercarriage width mm 1 550

M Track gauge mm 1 250

N Track shoe width, standard mm 250

O Blade height mm 300

P Ground clearance of blade up mm 328

Q Blade depth mm 348

Unit 1.3 m arm

A Max digging reach mm 4 725

A Max digging reach on ground mm 4 600

B Max digging depth mm 2 695

B Max digging depth (8 ft level) mm 2 230

C Max vertical wall digging depth mm 2 200

D Max digging height mm 4 290

E Max dumping height mm 2 975

F Min swing radius mm 2 100

Boom swing radius (left/right) mm 70 / 50

MACHINE DIMENSIONS

DRIVE SYSTEM

Travel speed (low high) 2.38 / 4.35 km/h

Maximum traction 2.266 t

Maximum gradeability 2.266 t

REFILL CAPACITIES

Fuel tank 30 l

Cooling system (radiator capacity) 6.9 l

Engine oil 5.7 l

Travel device 0.6 l

Hydraulic tank 27 l

HYDRAULICS

Main pumps 2 28.2 l/min @ 2 350 rpm

Pilot pump (gear design) 20/10.5 l/min

Aux. line (2 way) 48 l/min
