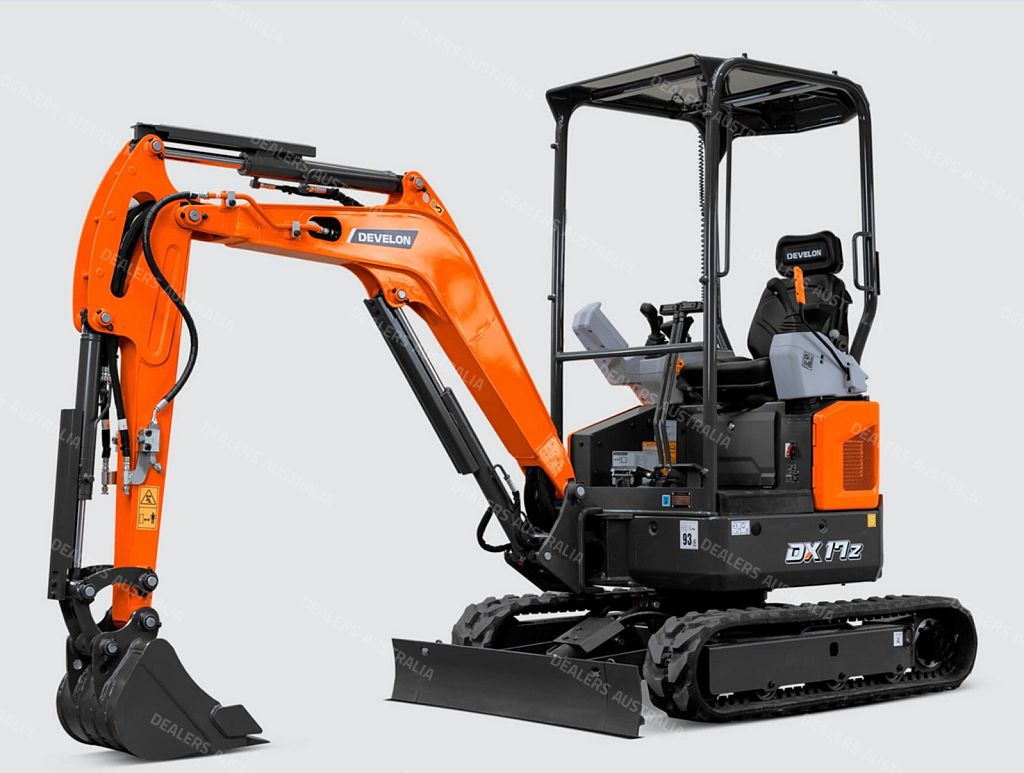

DEVELON DX17Z-7 1.7T TRACKED EXCAVATOR for sale

FOLLOW US FOR ALL NEW LISTINGS: @dwlmachinery

Ph: Andrew (02) 8311 1321 or 1300 DIAL DWL

SPECIFICATIONS DIMENSION & WORKING RANGE

ENGINE

Make KUBOTA

Model D902

Number of cylinders 3

Rated power, gross 16.2 hp (12.1 kW) @ 2400 rpm

Rated power, net 16 hp (11.9 kW) @ 2400 rpm

Max. torque, net 5.57 kgf.m @ 1900 rpm

Displacement 0.898 l

Bore and stroke 72 73.6 mm

Starter 12 V, 1.2 kW

Alternator 12 V, 40 A

Air cleaner Double elements Unit DX17Z-7(Canopy) DX19-7(Cab) DX19-7(Canopy)

Boom length mm 1750 1750

Arm length mm 1030 1230 1030 1230

Bucket capacity m3 0.04 0.04

Undercarriage (track + grouser) - Rubber Rubber

Operating weight kg 1850 1980 1885 2020

Counterweight kg 180 260

A Overall length mm 3531 3528 3837 3835

C Overall width (track extension) mm 994 (1290) 994 (1290)

Y Overall width (dozer blade) mm 1294 1294

B Overall height mm 2320 2275 2270

H Overall width of upper structure mm 980 980

I Overall height of canopy mm 2320 2275 2270

Ground clearance of counterweight mm 415 415

Overall height of engine hood mm 1095 1240

P Minimum ground clearance mm 150 150

Rear-end distance mm 645 720 1065

Rear-end swing radius mm 645 720 1065

J Distance between tumblers mm 1230 1230

K Undercarriage length mm 1580 1580

L Undercarriage width (track extension) mm 994 (1290) 994 (1290)

M Track gauge (track extension) mm 764 (1060) 764 (1060)

N Track shoe width mm 230 230

Q Height of blade mm 225 225

R Ground clearance of blade up mm 183 183

S Depth of blade down mm 222 222

Unit DX17Z-7 DX17Z-7 DX19-7

(Canopy)

DX19-7

(Canopy)

DX19-7

(Cab)

Arm length mm 1030 1230 1030 1230 1230

C Max. digging reach mm 3910 4100 3940 4130 4130

Max. digging reach (ground level) mm 3820 4010 3850 4040 4040

G Max. digging depth mm 2240 2440 2340 2540 2540

A Max. vertical wall depth mm 1750 1940 1840 2020 2020

E Max. digging height mm 3730 3870 3470 3585 3585

F Max. dumping height mm 2670 2810 2440 2550 2550

I Min. swing radius mm 1580 1645 1725 1760 1760

Boom swing angle (left/right) 55 / 59 55 / 59 55 / 59

MACHINE DIMENSIONS

DRIVE SYSTEM

Travel speed (low high) 2.06 3.73 km/h

Traction force, max. (drawbar pull) 14.13 Kn

Max. Gradeability 35

REFILL CAPACITIES DX17Z-7 DX19-7

Fuel tank 19.5 l 21.3 l

Cooling system (radiator capacity) 5.4 l

Engine oil 3.7 l

Travel device 2 0.33 l

Hydraulic tank 12.1 l 20 l

HYDRAULICS

Main pumps 2 17.3 l/min @ 2300 rpm

Pilot pump (gear design) 10.4 / 6.2 l/min @ 2300 rpm

Relief presure aux. line 206 bar

MAXIMUM SYSTEM PRESSURE

Boom/arm/bucket (normal mode) 210 kg/cm2

Swing (crossover relief) 165 kg/cm2

SWING MECHANISM

Swing speed 9.2 rpm

Swing torque 4025 lbf.ft. (557 kgfm)

ENVIRONMENT

Sound level (ISO 6395) 92 dB(A)
