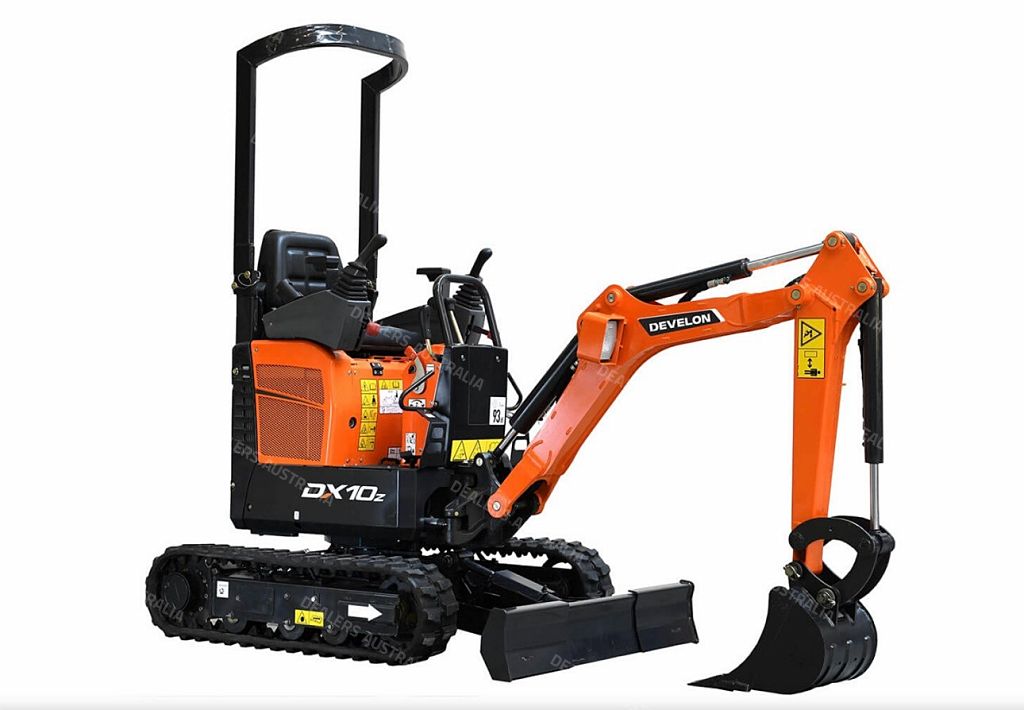

DEVELON DX10Z-7 1T TRACKED EXCAVATOR for sale

FOLLOW US FOR ALL NEW LISTINGS: @dwlmachinery

Ph: Andrew (02) 8311 1321 or 1300 DIAL DWL

ENGINE

Make KUBOTA

Model D722

Number of cylinders 3

Rated power, gross 10.35 hp (7.6 kW) @ 2,050 rpm

Max. torque, net 4.08 kgf.m @ 1,600 rpm

Displacement 0.719 l

Bore and stroke 67 mm 68 mm

Air cleaner Double elements

Front - 2-Pillar Canopy

Boom length mm 1,450

Arm length mm 890

Bucket capacity (ISO) m3 0.02

Undercarriage / Shoe Rubber

A Overall length mm 3,010

C Overall height Boom mm 1,095

D Overall height Canopy mm 2,220

E Housing width mm 730

H Counterweight clearance mm 395

I Dozer lift clearance mm 227

J Dozer digging depth mm 220

K Tumbler distance mm 1,025

M Track length mm 1,353.1

N Track height mm 328.2

O Shoe width mm -

P Dozer blade height mm 200

R Overall width (Retracted/Extended) mm 730/1,100

Q Track gage (Retracted/Extended) mm 550/920

Distance to dozer end mm 890

Canopy width mm 730

Rear-end distance mm 550

Ground clearance mm 150

Rear swing radius mm 550

Boom mm 1,450

Operating weight kg 1,165

Bucket (SAE) m3 0.02

Arm mm 890

A Max. digging reach mm 3,400

B Max. digging reach (ground) mm 3,355

C Max. digging depth mm 2205

D Max. digging height mm 3050

F Min. swing radius mm 1,410 (1,110)

G Max. bucket pin height mm 2645

H Max. vertical wall depth mm 1025

I Max. radius vertical mm 2935

MACHINE DIMENSIONS

WORKING RANGE

PERFORMANCE

Travel speed (low high) 1.7/3.4 km/h

Traction force, max. (drawbar pull) 12.75 Kn

Max. gradeability 30

Bucket digging force 10.8 kN

Arm digging force 6.3 kN

PERFORMANCE

Fuel tank 14.2 l

Cooling system (radiator capacity) 2 l

Hydraulic tank 10.8 l

Engine oil 2.8 l

Travel device 2 0.33 l

HYDRAULICS

Main pumps 2 10.4 l/min @ 2,300 rpm

Pilot pump (gear design) 3.1 l/min @ 2,300 rpm

Max. pressure auxiliary line 176 bar

Swing (crossover relief) 69 bar

MAXIMUM SYSTEM PRESSURE

Boom/arm/bucket (normal mode) 210 kg/cm2

Swing (crossover relief) 165 kg/cm2

SWING MECHANISM

Swing speed 8.7 rpm

Swing torque 152.7 kgf.m
