2024 Hamelex Atub for sale

Hamelex White HXW Aluminium Quarry Tub – In Stock

HXW aluminium quarry tub built for Australian quarry and construction work, focused on payload efficiency, durability and controlled discharge.

Dimensions

Body length: 4,600mm

Body height: 1,550mm

Standard width aluminium tub

Construction

Lightweight aluminium body

8mm aluminium floor

5mm aluminium quarry tailgate, mill finish

Laser-cut components for accuracy and consistency

Controlled welding processes for repeatable strength and straight body alignment

Built in Australia for local operating conditions

Subframe & Mounting

RHS steel subframe supplied

Crossmembers supplied loose for correct chassis fit-up

Pivot plates and body lock supplied loose

Suits standard square truck chassis with square rear frame

Hoist & Hydraulics

Hyva 3-stage front end hoist

Hydraulic hose burst valve fitted

Ringfeder hydraulic coupling supplied

Duomatic and triomatic air and hydraulic services supplied loose

Tailgate & Discharge

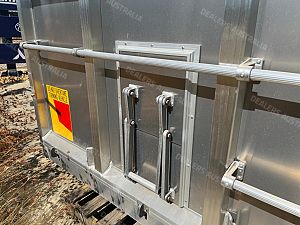

Forward/top-hinged quarry tailgate

Air-operated tailgate lock

In-cab control plus roadside rear switch

Spreader chains fitted

Central 380mm grain door with grain locks

Access & Electrical

Rear access rungs and internal aluminium steps

Shovel rack fitted

Rear work lamp provision with switch supplied loose

ADR-compliant Hella side marker lamps

Truck Suitability
Suitable for 6x4 and 8x4 rigid tipper trucks operating under GML, CML or HML.
Compatible with Volvo, Kenworth, Mack, Scania, Isuzu, Hino and UD chassis, subject to final fit-up.

Availability
Unit is in stock. Body-only or full fit-up can be quoted and completed at our Adelaide dealership.
