2026 Maxi-CUBE R Series Reefer for sale

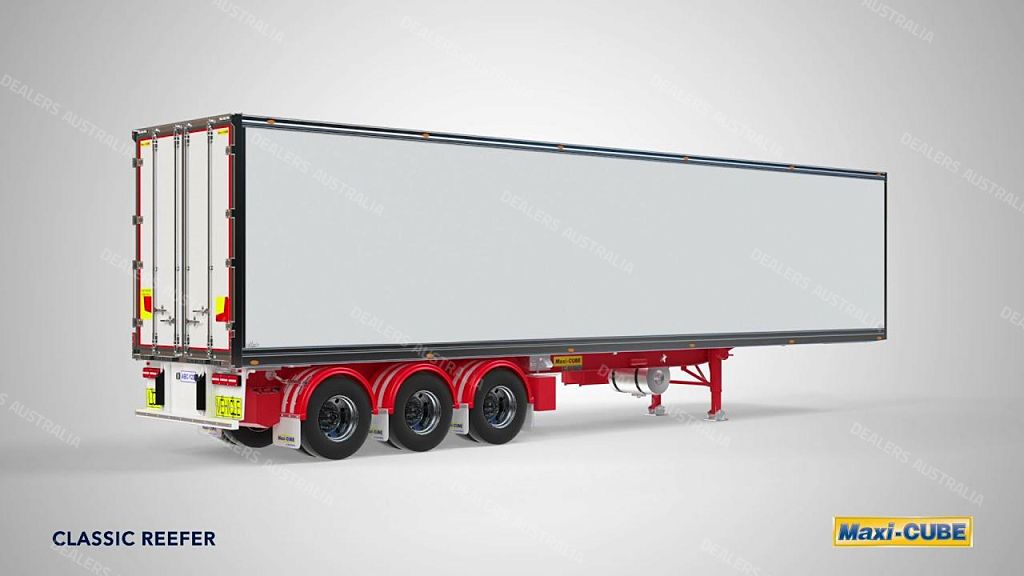

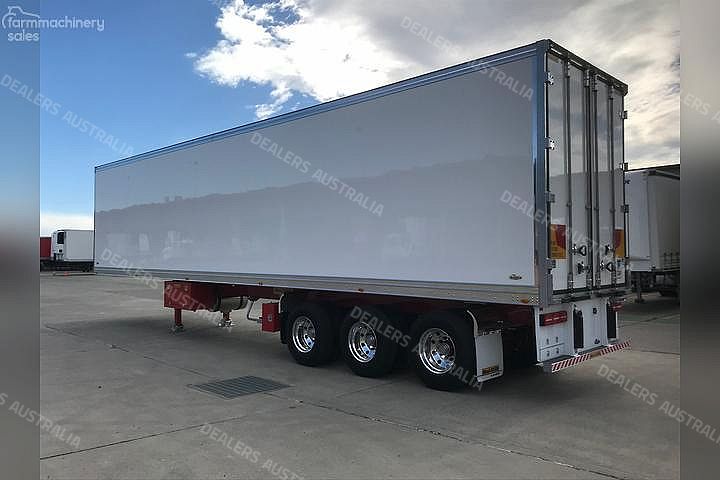

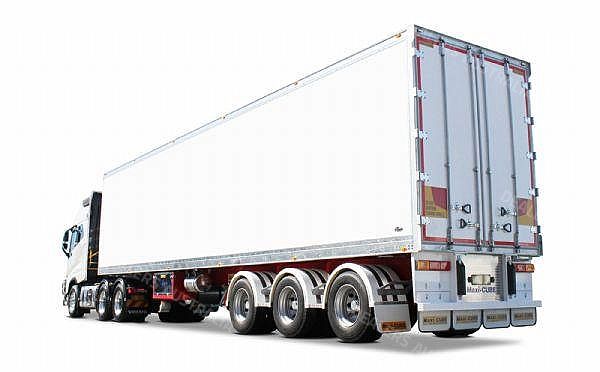

Maxi-CUBE by Freighter Group - R Series Refrigerated Van Semi Trailer (-30°C) - Ready Range Specification – Built to Order

Manufactured in Ballarat, Victoria, Maxi-CUBE refrigerated trailers are engineered specifically for Australian freight conditions, combining proven construction with advanced manufacturing focused on durability, payload efficiency and long operational life. This is genuine Australian manufacturing. Australian engineering. Australian fabrication. Since 1972, Maxi-CUBE has become one of Australia’s most recognised refrigerated trailer platforms, widely utilised by national logistics fleets, supermarket distributors and regional operators for consistent thermal performance, operational reliability and strong long-term resale value. Operators continue to specify Maxi-CUBE because the trailers maintain structural integrity, retain insulation performance and deliver dependable results across demanding high-utilisation refrigerated freight environments.

Purpose Built for Refrigerated Freight
This R Series Maxi-CUBE Reefer Pantec Ready Range configuration suits frozen, chilled and temperature-controlled transport applications operating throughout South Australia, the Northern Territory and interstate linehaul routes.

Overall Length 13,540mm
Overall Height 4,300mm
Tri Axle configuration
Turntable Height 1,270mm
King Pin Position 1,240mm
Suspension Spread 2,700mm
Approximate tare 10,090kg
Rated for refrigerated transport down to -30°C operation.

Configured for supermarket distribution, food logistics, meat transport, produce and general refrigerated freight across Australian operating conditions.

Standard Engineering Specification
• Maxi-CUBE insulated refrigerated pantech body
• Composite insulated wall construction
• Aluminium Maxi-Grip airflow insulated floor
• FRP insulated rear doors with stainless locking hardware
• Internal fibreglass scuff protection
• Three lane air chute system
• Galvanised rear frame construction
• 10mm skid plate with 50mm bolt-in kingpin
• 2 speed landing legs with galvanised compensating foot
• Stainless steel toolbox
• 60L polished aluminium water tank
• Rear safety ladder and dock buffers
• Road Train wiring provision available

Preferred Refrigeration Platform
Maxi-CUBE refrigerated trailers are commonly specified with the Schmitz V2.0 refrigeration unit, increasingly selected by Australian fleet operators for cooling performance, fuel efficiency and integrated telematics visibility. When ordered with the trailer, the refrigeration unit is factory installed and commissioned, delivering a complete turnkey refrigerated transport solution ready for operation on delivery. Alternative refrigeration brands including Thermo King, Carrier and other fleet-preferred systems remain available upon request.

Suspension and Running Gear
• Hendrickson HT230 air suspension
• Fuwa K Hitch drum brake axles
• Knorr Bremse EBS braking system
• Firestone 11R22.5 tyres
• Lightweight aluminium wheels
• Aluminium suspension guards with flaps
• Hubodometer fitted

Other Maxi-CUBE Models Available
• R – Refrigerated Pantec Trailer
• RL – Refrigerated Lead Trailer
• HCR – Hi-Cube Refrigerated Trailer
• HCRL – Hi-Cube Refrigerated Lead Trailer
• DF – Dry Freight Trailer
• DFL – Dry Freight Lead Trailer
• DFD – Dry Freight Drop Deck Trailer
• SAS – Slide-A-Side Trailer
• SASL – Slide-A-Side Lead Trailer

Complete B-Double, PBS and Road Train rated combinations available. Sales, parts and service support available locally through in , supporting operators across South Australia and the Northern Territory.

Built in Australia. Built for refrigerated freight. Built to order.
Production allocations available now.
